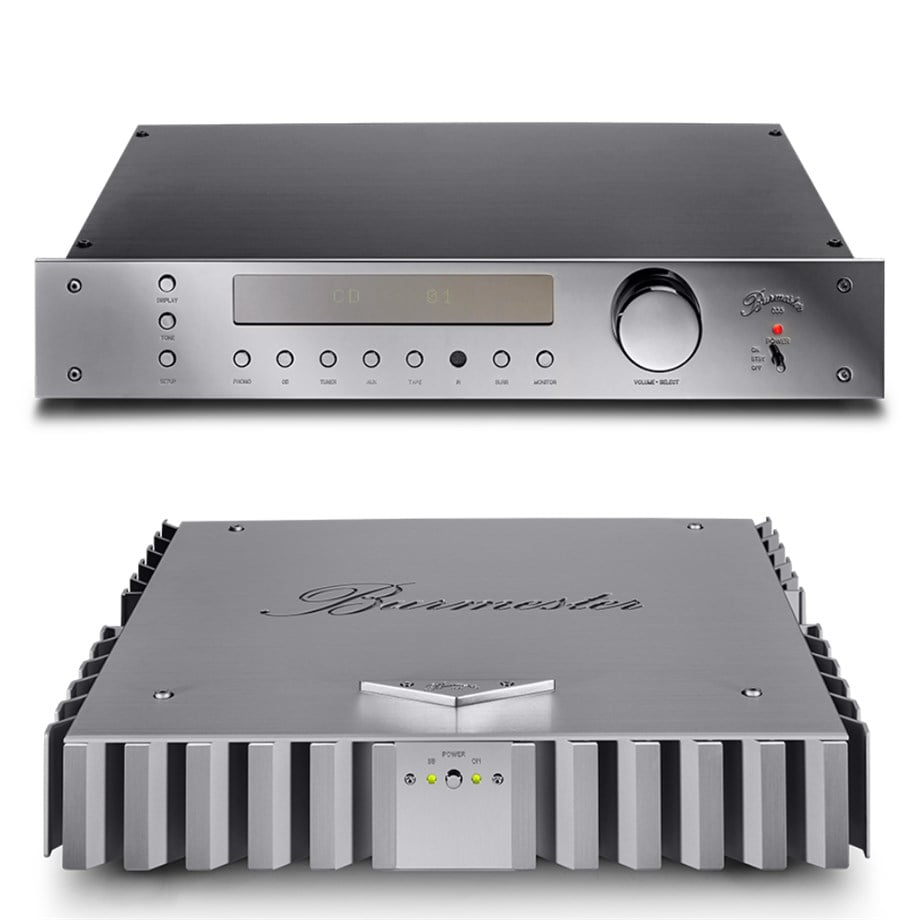

Burmester Preamfi 035 - Poweramfi 036
Çok Temiz durumda .Kutusuz olduğu için adresimizden alınmalı Takasa açık değildir.

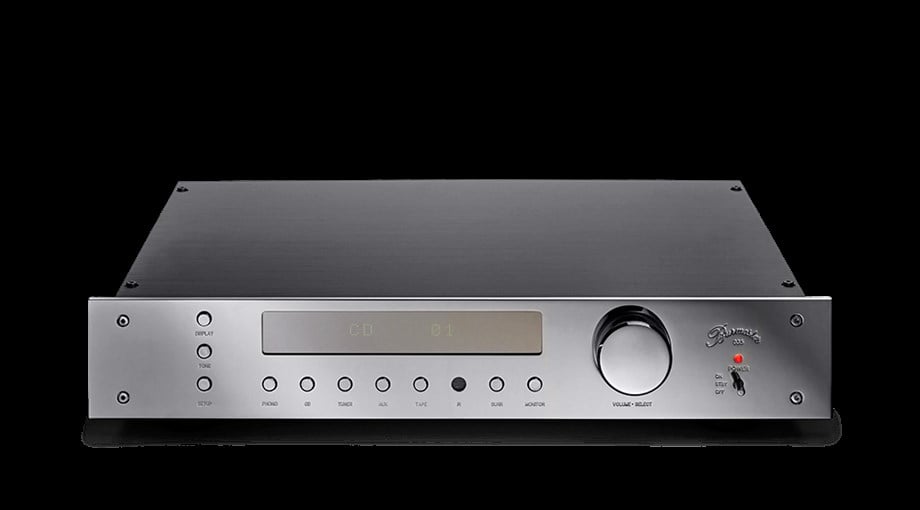

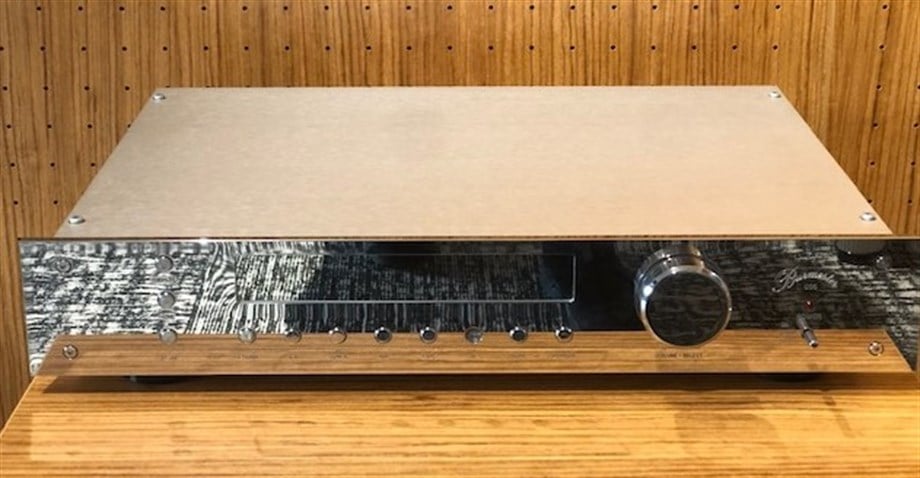

Burmester Preamfi 035
Teknik Özellikler
Weight 8 kg (17.6 Ibs) Width 482 mm (19’’) Height 96 mm (3.8’’) Depth 336 mm (13.3’’)

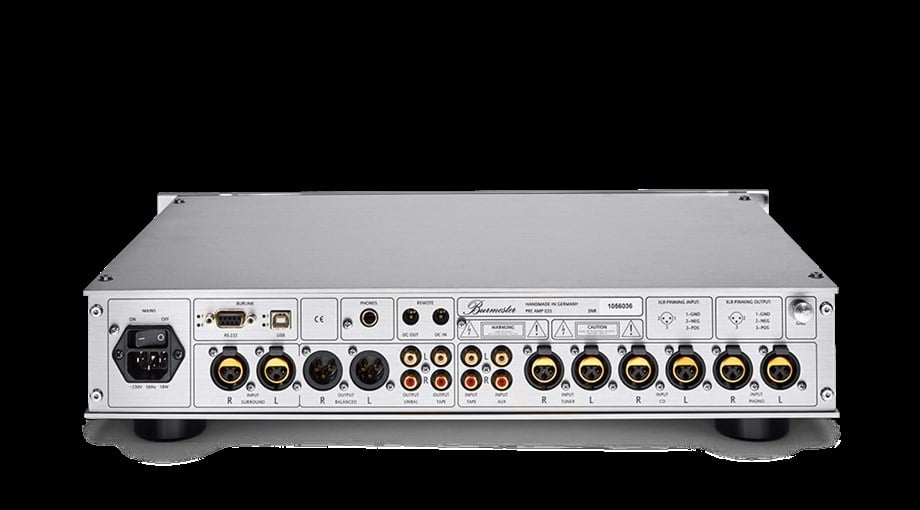

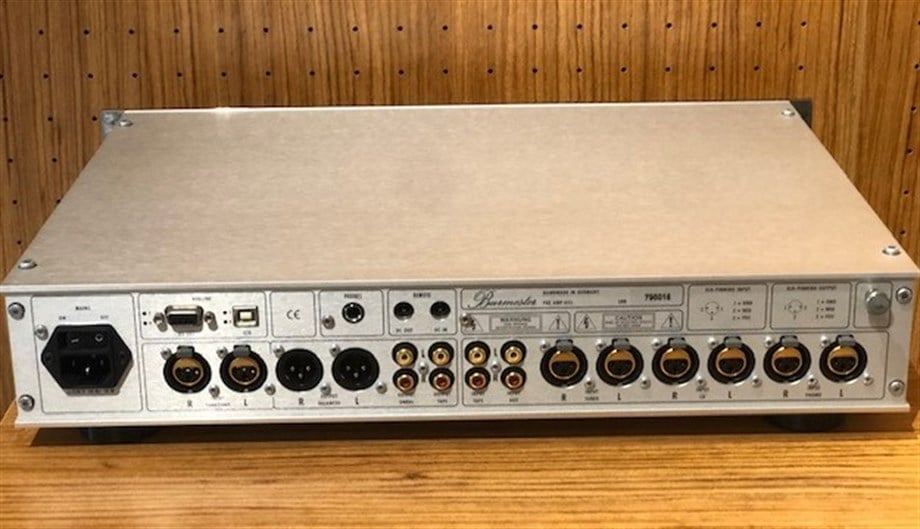

Inputs 3 XLR / 2 RCA Phono inputs optional MM / MC Outputs 1 XLR, 1 RCA, 1 Tape out (XLR) Head phone jack 6.3 mm Module slots 1 Optional modules Phono MC Ώ MM, CD bal. Surround Thruput yes Remote controlled yes BurLink yes REMOTE INPUT/ OUTPUT 1 / 1 Input Impedance XLR/RCA 22 Ω/ 22 kΩ Output Impedance XLR/RCA 230 Ω/ 115 Ω Input Sensitivity re. 1 V 160 mV Max. output level 12 V Frequency response -3 dB < 10 Hz - 200 kHz Signal-to-noise-ratio > 105 dB
— New Burlink with RS - 232 and USB 2 . 0 interfaces for easy integration in CrestronTM or AMX® control systems
— Easy handling of software updates
— Front-to-back balanced circuitry
— Tone and balance regulation can be bridged completely
— Input impedance can be adjusted in the range of +/- 6 dB for each input
— Output voltage can be increased by 6 dB in the setup menu (for example when using output stages of other manufacturers)
— The circuitry is laid out so that not only the theoretical shortest signal path can be achieved, but also so that the wiring to the input and output sockets can be omitted.
— A top-quality dot-matrix display provides a welllegible presentation of all operational conditions even from a greater distance
— Display can be switched off or dimmed in three stages
— Remote control 067 or 005 is available at a surcharge
— Optional phono module is located on the opposite side of the power supply in order to keep the hum pickup as low as possible
— Just as in the MC 2 of the 808, the signal processing in the phono module of the 035 is absolutely balanced and completely DC coupled

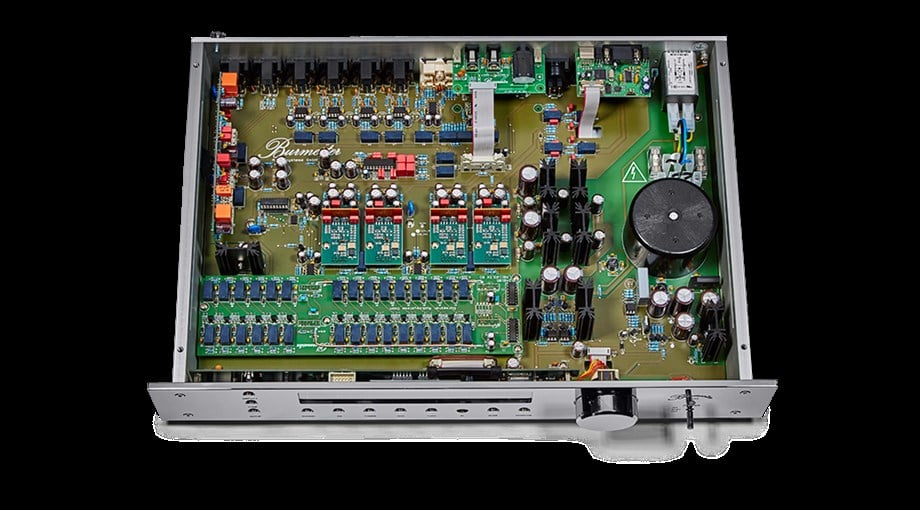

— The elaborate circuitry is discretely laid out
— Generously sized power supply: 50 VA transformer with overall 55 ,000 μF filtering
— Volume when switched on can be programmed
— Burmester output stages can be remotely controlled (on/off) by the 035 .

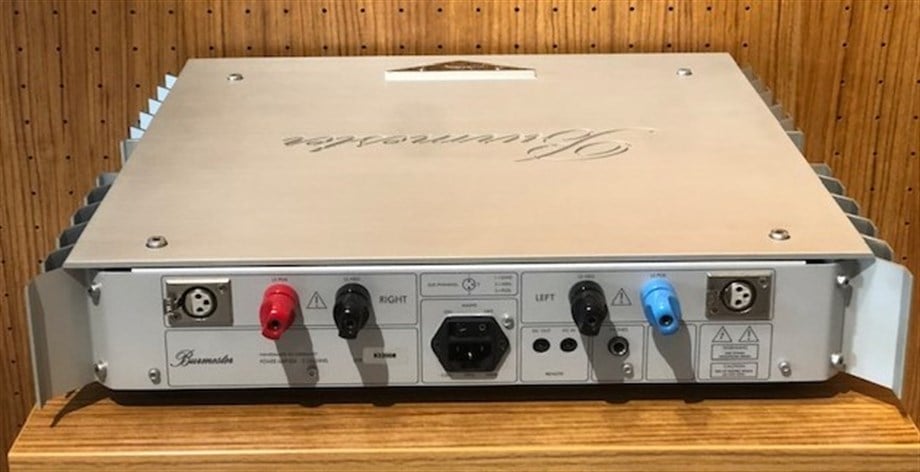

Burmester Poweramfi 036
Teknik Özellikler
Dimensions (WxHxD) Weight 482 mm x 95 mm x 482 mm Weight app. 25 kg (55lbs.)
Rated power output Mono: Stereo: 2x171 W at 4Ω Mono: 1x300 W at 4Ω Continuous peak current 30 A Damping factor >1800 Signal-to-noise ratio >81 dB Input impedance 1.5 kΩ (bal.), 15 k Ω (unbal.) Input sensitivity 730 mV for full gain 320 mV for 100W at 4 Ω load Frequency response 0-200kHz (-3dB) Rise time (stereo/mono) 1,4μs at 4/8 Ω load 1,9 μs at 1 Ω load
— Bridgeable into mono operation by external mono adapters or internally at the factory when ordering a pair of 036 mono amps
— Bi-amping with the use of external bi-amping adapters
— Balanced circuitry throughout like all Burmester components
— Input stages in proprietary X-Amp technology (Class A)
— Low overall negative feedback
— Signal path completely DC-coupled, no distorting capacitors
— High current delivery capabilities due to an oversized power supply
— High damping factor enables effortless control of any speaker over the entire frequency range, even at high frequencies
— Stable at any load over the entire frequency range
— Massive binding posts for connection of speaker cables (use only spade plugs!)
— Remote on/off switching in connection with
— Burmester pre-amps and D/A converters with variable output (remote control current: 10V DC)
— A protection circuit outside of the signal path monitors the 036 during operation for overheating, DC offset and overdrive
