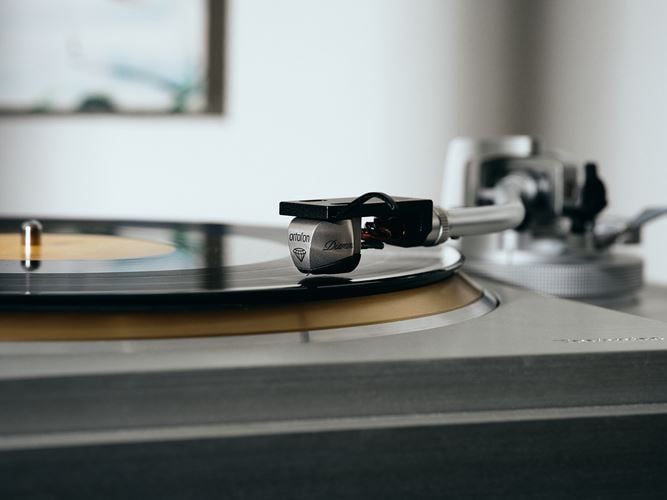

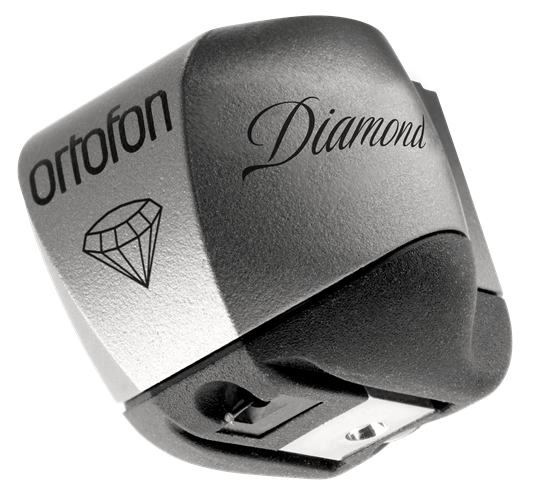

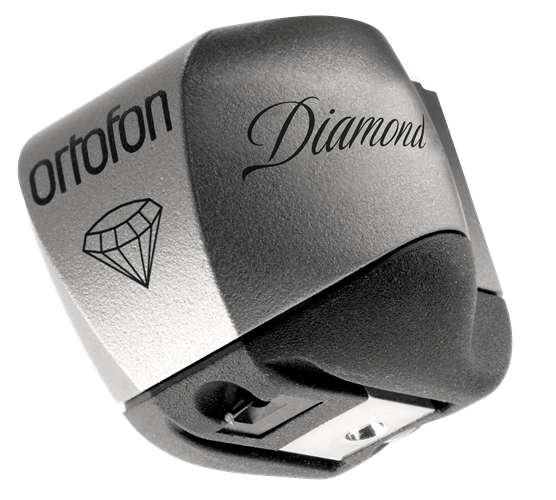

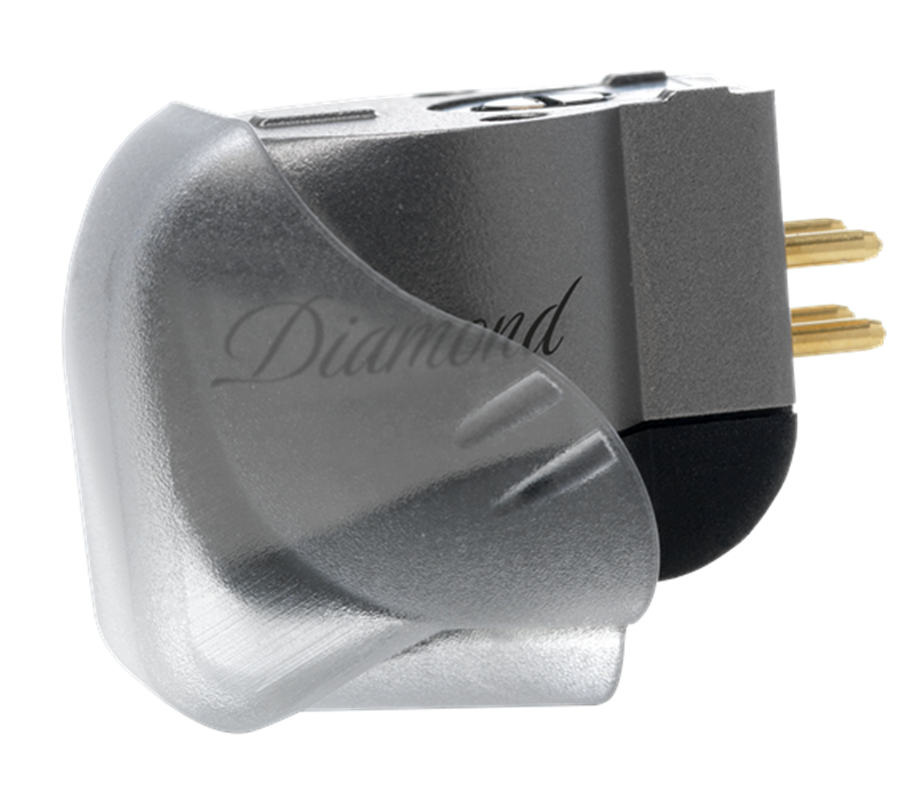

ORTOFON MC DIAMOND Pikap İğnesi

MC DIAMOMD  Pikap İğnesi

The Ortofon MC DIAMOND  Technical data

Output voltage at 1 kHz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz - 0.5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 20 dB
Frequency response - 20 Hz-20 kHz +/- 2 dB
Tracking ability at 315 Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 11 µm/mN
Stylus type - Special polished Nude Ortofon Replicant 100 on Diamond Cantilever
Stylus tip radius - r/R 5/100 µm
Tracking force range - 2.5-2.8 g (25-28 mN)
Tracking force, recommended - 2.6 g (26 mN)
Tracking angle - 23°
Internal impedance, DC resistance - 6 Ohm
Recommended load impedance - > 10 Ohm

Coil wire material - Ultra pure oxygen free copper
Cartridge body material - SLM Titanium
Cartridge colour - Silver/Black
Cartidge weight - 17.5 g
